2007 CSX Press Kit
Overview

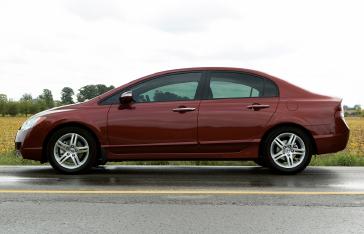

The 2007 CSX
Acura's CSX luxury compact sedan serves as the "gateway" to the Acura lineup in Canada. Embodying the brand's core virtues – driving performance balanced with luxurious accommodation – CSX has the size, design, functional attributes, and fun-to-drive traits that young, sophisticated Canadians aspire to own. The Acura CSX is a Canadian-exclusive product. It was specified by Acura Canada for Canadian requirements, and is built in Canada. Now offered in four exciting trims, CSX, CSX Premium, CSX NAVI, and CSX Type-S, this exciting model provides a refined, powerful and feature laden entry point to the Acura family.
Price and Build
Related News
2007 CSX Specifications
POWERTRAIN
| Touring | Premium | Type S | |
|
Drivetrain
|
Front-wheel drive | Front-wheel drive | Front-wheel drive |
|

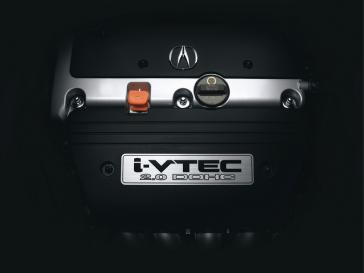

Engine Type
|
2.0 litre, 16-valve, DOHC, 4-cylinder | 2.0 litre, 16-valve, DOHC, 4-cylinder | 2.0 litre, 16-valve, DOHC, 4-cylinder |
|
Horsepower
|
155 hp @ 6000 rpm (sae NET Rev 8/04)* | 155 hp @ 6000 rpm (sae NET Rev 8/04)* | 197 hp @ 7800 rpm (sae NET Rev 8/04)* |
|
Torque
|
139 lbs-ft @ 4500 rpm* | 139 lbs-ft @ 4500 rpm* | 139 lbs-ft @ 6100 rpm* |
|
Bore & Stroke
|
86 mm x 86 mm | 86 mm x 86 mm | 86 mm x 86 mm |
|
Displacement
|
1998 cc | 1998 cc | 1998 cc |
|
Compression Ratio
|
9.6:1 | 9.6:1 | 11.0:1 |
|
Redline
|
6800 rpm | 6800 rpm | 7800 rpm |
|
Fuel System
|
Programmed Fuel Injection (PGM-FI) | Programmed Fuel Injection (PGM-FI) | Programmed Fuel Injection (PGM-FI) |
|
Valvetrain
|
4 valves per cylinder, chain driven, dual overhead camshafts with i-VTEC® | 4 valves per cylinder, chain driven, dual overhead camshafts with i-VTEC® | 4 valves per cylinder, chain driven, dual overhead camshafts with i-VTEC® |
|
Engine Block
|
Aluminum-alloy with cast iron cylinder liners | Aluminum-alloy with cast iron cylinder liners | Aluminum-alloy with cast iron cylinder liners |
|
Emissions Control:
|
Surpasses the stringent 2005 Tier2 Bin5 emission requirements | Surpasses the stringent 2005 Tier2 Bin5 emission requirements | Surpasses the stringent 2005 Tier2 Bin5 emission requirements |
|
Ignition System
|
Electronic direct | Electronic direct | Electronic direct |
|
Transmission:
|
5-speed manual (standard) 5-speed automatic, with steering wheel- mounted paddle shift controls (optional) | 5-speed manual (standard) 5-speed automatic, with steering wheel- mounted paddle shift controls (optional) | Close ratio 6-speed manual transmission with Helical limited-slip differential |
| * Horsepower and torque calculations reflect new SAE J1349 procedures revised August 2004. | |||
SUSPENSION/CHASSIS
| Touring | Premium | Type S | |
|
Front Suspension:
|
Toe Control-Link Independent Macpherson Strut with coil springs | Toe Control-Link Independent Macpherson Strut with coil springs | Sport-tuned Control-Link Independent Macpherson Strut with coil springs |
|
Rear Suspension:
|
Reactive-link independent double-wishbone with coil springs | Reactive-link independent double-wishbone with coil springs | Sport-tuned reactive-link independent double-wishbone with coil springs |
|
Shock Absorbers:
|
Gas-pressurized with progressive valve technology | Gas-pressurized with progressive valve technology | Gas-pressurized with progressive valve technology |
|
Steering Type:
|
Variable power-assisted rack-and-pinion | Variable power-assisted rack-and-pinion | Variable power-assisted rack-and-pinion |
|
Stabilizer Bars - Front:
|
24.2 mm diameter | 24.2 mm diameter | 27 mm diameter |
|
Stabilizer Bars - Rear:
|
11 mm diameter | 11 mm diameter | 11 mm diameter |
|

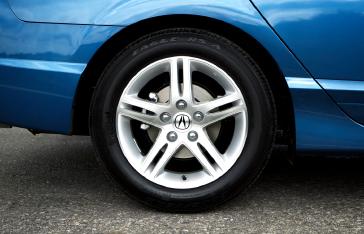

Wheels:
|
Aluminum-alloy, 16" x 6.5" J | Aluminum-alloy, 16" x 6.5" J | Aluminum-alloy, 17" |
|
Tires:
|
All-Season P205/55 R16 89H | All-Season P205/55 R16 89H | All-Season P215/45 R17 |
|
Braking System:
|
Power-assisted, 4-wheel disc with Anti-Lock Braking System (ABS) | Power-assisted, 4-wheel disc with Anti-Lock Braking System (ABS) | Power-assisted, 4-wheel disc with Anti-Lock Braking System (ABS) |
|
Front Discs
|
Ventilated, 282 mm | Ventilated, 282 mm | Ventilated, 282 mm |
|
Rear Discs
|
260 mm | 260 mm | 260 mm |
CAPACITIES
| Touring | Premium | Type S | |
|
Engine Oil:
|
4.2 litres refill capacity | 4.2 litres refill capacity | 4.2 litres refill capacity |
|
Cooling System MT/AT:
|
Manual Transmission: 6.55 Automatic Transmission: 6.45 | Manual Transmission: 6.55 Automatic Transmission: 6.45 | Manual Transmission: 6.55 |
|
Washer Tank:
|
4.5 litres | 4.5 litres | 4.5 litres |
|
Fuel Tank:
|
50 litres | 50 litres | 50 litres |
|
Passenger Volume:
|
2574 litres | 2502 litres | 2502 litres |
|
Cargo Volume:
|
340 litres | 340 litres | 340 litres |
FUEL ECONOMY
| Touring | Premium | Type S | |
|
Fuel Consumption (L/100 km) - Manual: City/Highway
|
8.7/6.4* | 8.7/6.4* | 10.2/6.8* |
|
Fuel Consumption (L/100 km) - Automatic: City/Highway
|
9.5/6.5* | 9.5/6.5* | n/a |
|
Recommended Fuel
|
Regular unleaded | Regular unleaded | 91 octane† |
| * Use for comparison purposes only. Your mileage may vary. See your Retailer for latest 2006 EnerGuide published by NRCan (when available). | |||
INTERIOR DIMENSIONS (mm)
| Touring | Premium | Type S | |
|
Front/rear Headroom
|
1001/951 | 967/951 | 967/951 |
|
Front/rear Legroom
|
1072/878 | 1072/878 | 1072/878 |
|
Front/rear Hiproom
|
1317/1296 | 1317/1296 | 1317/1296 |
|
Front/rear Shoulder room
|
1361/1332 | 1361/1332 | 1361/1332 |
EXTERIOR DIMENSIONS
| Touring | Premium | Type S | |
|
Wheelbase
|
2700 mm | 2700 mm | 2700 mm |
|
Track, front
|
1499 mm | 1499 mm | 1499 mm |
|
Track, rear
|
1528 mm | 1528 mm | 1528 mm |
|
Length
|
4544 mm | 4544 mm | 4544 mm |
|
Width
|
1752 mm | 1752 mm | 1752 mm |
|
Height
|
1435 mm | 1435 mm | 1435 mm |
|
Ground Clearance
|
150 mm | 150 mm | 150 mm |
|
Curb Weight: Manual Transmission
|
1289 kg | 1313 kg | 1313 kg |
|
Curb Weight: Automatic Transmission
|
1322 kg | 1343 kg | 1343 kg |
|
Weight Distribution F/R%:
|
MT: 61/39 | MT: 61/39 | MT: 61/39 |
AT: 62/38
| AT: 62/38 |
SAFETY FEATURES
| Touring | Premium | Type S | |
|
Anti-Lock Braking System (ABS) with Electronic Brake Distribution (EBD)
|
• | • | • |
|
Active head restraints
|
• | • | • |
|
Driver and front passenger dual-stage, dual-threshold front airbags (SRS)
|
• | • | • |
|
Driver and front passenger side airbags (SRS) with front passenger Occupant Position Detection System (OPDS)
|
• | • | • |
|
Vehicle stability assist (VSA) with traction control
|
• | ||
|
3-point seatbelts with Automatic Locking Retractor (ALR) and Emergency Locking Retractor (ELR), front and rear
|
• | • | • |
|
Front seat-belt dual pretensioners
|
• | • | • |
|
Front adjustable seat-belt anchors
|
• | • | • |
|
Remote keyless entry system with panic feature and trunk release
|
• | • | • |
|
Security system
|
• | • | • |
|
ECU immobilizer systems
|
• | • | • |
|
Child-proof rear door locks
|
• | • | • |
|
LATCH Child Safety Seat Anchor System
|
• | • | • |
|
Inner trunk emergency release
|
• | • | • |
|
Side curtain airbags
|
• | • | • |
|
EXTERIOR FEATURES
|
Touring | Premium | Type S |
|
Front splash guards
|
• | • | • |
|
Integrated rear glass antenna
|
• | • | • |
|

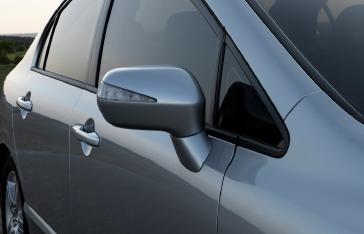

Heated power door mirrors with integrated turn signals
|
• | • | • |
|
Body-coloured door handles with chrome insert
|
• | • | • |
|

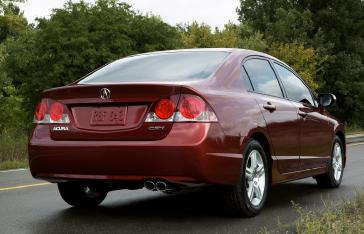

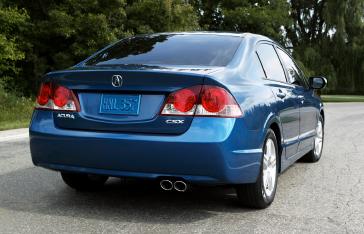

Chrome dual tailpipe finisher
|
• | • | • |
|
Rear window defroster with timer
|
• | • | • |
|

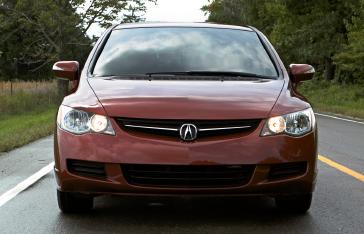

High Intensity Discharge (HID) headlights
|
• | • | |
|
Body-coloured, retractable door mirrors
|
• | • | • |
|
Fog lights
|
• | ||
|
Wing spoiler with integrated LED brakelight
|
• |
SEATING AND TRIM
| Touring | Premium | Type S | |
|
Driver's seat height adjustment
|
• | • | • |
|
Leather-trimmed interior with heated front seats
|
• | • High-contraststitching and Type-S badge embossing | |
|

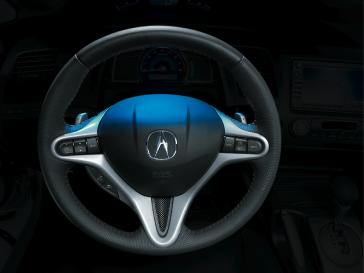

Leather-wrapped 3-spoke steering wheel with aluminum panel insert
|
• | • | • |
|
Centre console armrest with storage compartment and lid
|
• | • | • |
|
60/40 split fold-down rear seatback
|
• | • | • |
|
Passenger seatback pocket
|
• | • | • |
|
Front seat adjustable headrests
|
• | • | • |
|
Rear headrests (3)
|
• | • | • |
|
Rear armrest
|
• | • | • |
COLOUR (EXTERIOR/INTERIOR)
| Touring | Premium | Type S | |
|
Alabaster Silver Metallic
|
Black Fabric | Black Leather | Black Leather |
|
Nighthawk Black Pearl
|
Black Fabric | Black Leather | Black Leather |
|
Galaxy Grey Metallic
|
Black Fabric | Black Leather | Black Leather |
|
Royal Blue Pearl
|
Black or Parchment Fabric | Black or Parchment Leather | Black or Parchment Leather |
|
Neutron Blue Metallic
|
Black Fabric | Black Leather | Black Leather |
|
Habanero Red Pearl
|
Black Fabric | Black Leather | Black Leather |
COMFORT AND CONVENIENCE
| Touring | Premium | Type S | |
|
Automatic Climate Control System with Micron Air Filtration System
|
• | • | • |
|

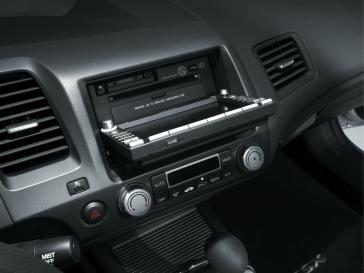

Acura Sound System with AM/FM stereo, in-dash CD player, 6 speakers, MP3/WMA™ compatibility
|
• | In-dash 6 CD changer | |
|
350-watt AM/FM/CD Premium audio system with digitalaudio card reader, MP3/WMA compatibility and 7 speakers including Subwoofer
|
• | ||
|
Speed-sensitive volume control
|
• | • | |
|
Adjustable steering column (tilt and telescopic)
|
• | • | • |
|

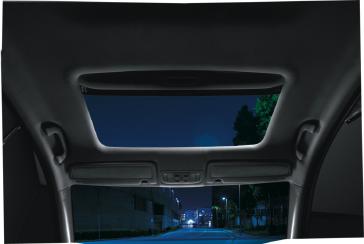

Power-operated moonroof with privacy glass and auto-open
|
• | • | • |
|

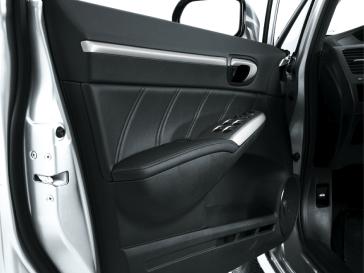

Power windows with driver's one-touch up/down and anti-pinch
|
• | • | • |
|
Illuminated ignition lock, driver's power window and mirror switches
|
• | • | • |
|
Power door locks with customizable automatic door locks
|
• | • | • |
|
Tachometer with metallic trim ring
|
• | • | • |
|
Digital quartz clock
|
• | • | • |
|
Maintenance Minder
|
• | • | • |
|
Driver's footrest
|
• | • | • |
|
Driver and front passenger vanity mirrors
|
• | • | • |
|
Overhead map light
|
• | • | • |
|
Beverage holders (Front and rear)
|
• | • | • |
|
Front windshield wipers with variable intermittent feature
|
• | • | • |
|
Accessory sockets (2)
|
• | • | • |
|
Trunk light
|
• | • | • |
|
Two-tier instrument panel
|
• | • | • |
|
Outside temperature display
|
• | • | • |
|
Blue ambient lighting and interior illumination
|
• | • | • |
|
Illuminated steering wheel-mounted audio and cruise controls
|
• | • | • |
|
Illuminated glove compartment
|
• | • | • |
|
Courtesy lights
|
• | • | • |
|
Remote lockable furl-filler door release
|
• | • | • |
| • = Standard | |||
